ST150M
AI-Enabled Satellite Modem Module
The ST150M satellite modem module can be quickly and effectively integrated into technology to develop unlimited applications for a range of markets. The modem leverages industry leading BLE5, Nordic C, and comprehensive unified APIs, empowering rapid development and customization of firmware for more advanced smart data applications and enabling AI at the edge.
| IoT Embedded Solutions |

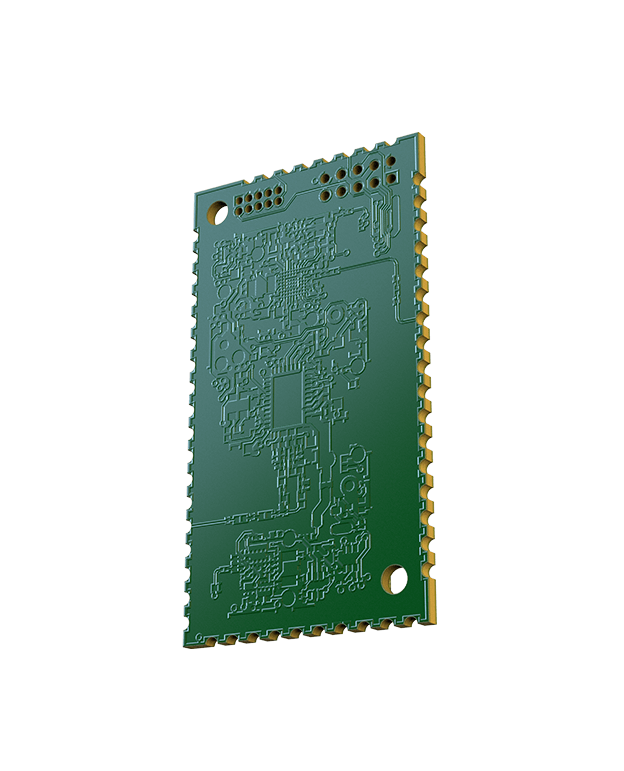

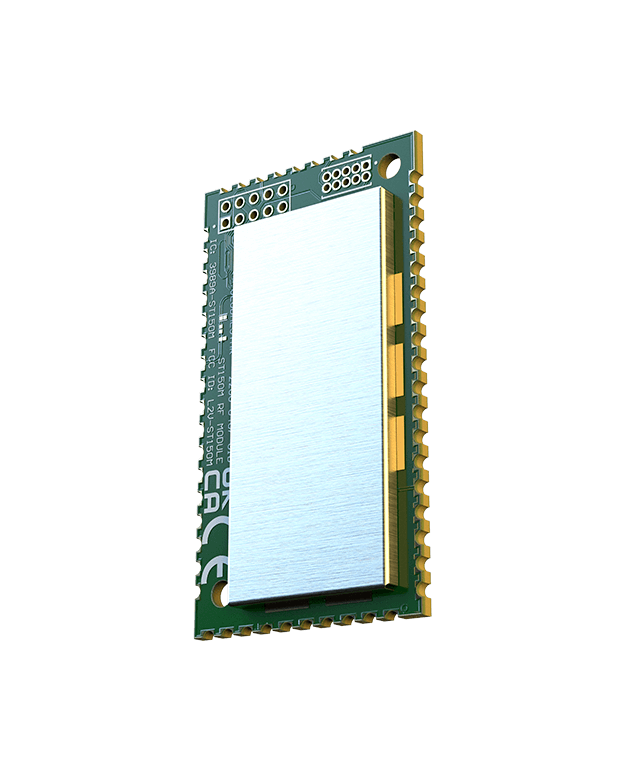

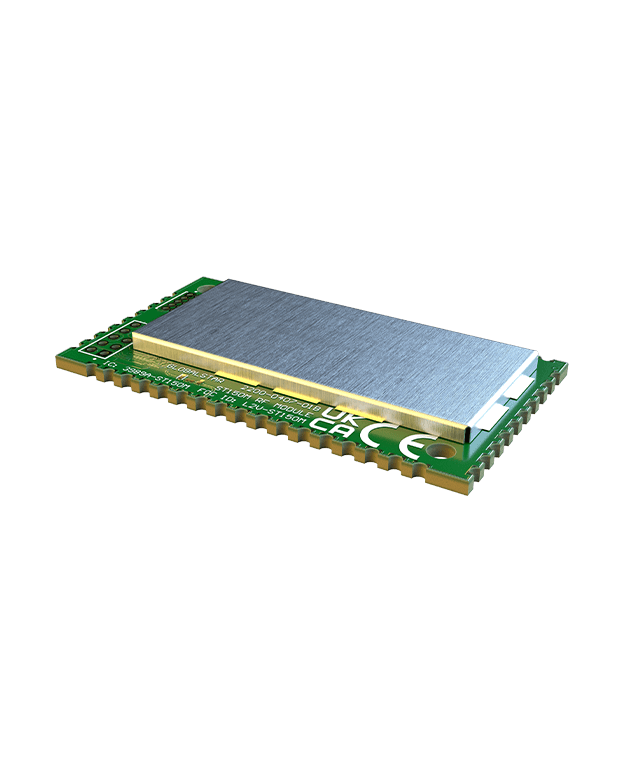

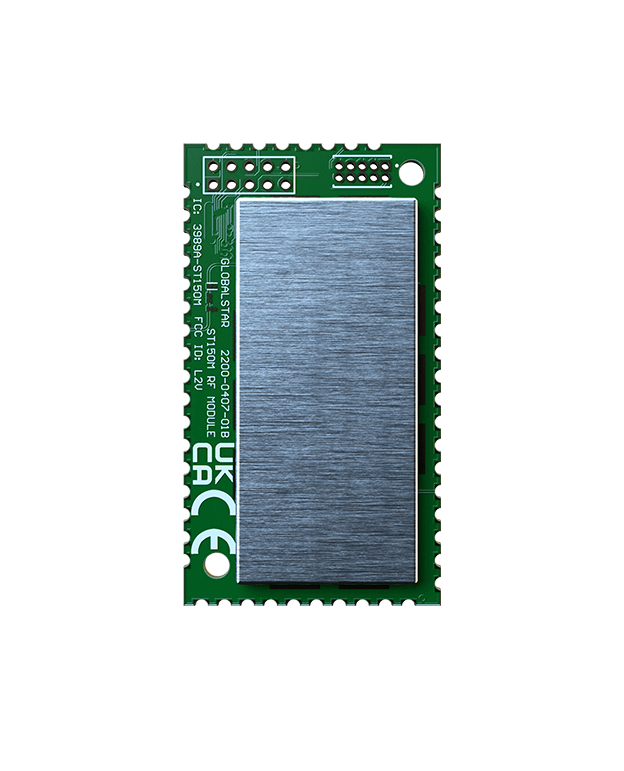

ST150M
AI-Enabled Satellite Modem Module
The ST150M satellite modem module can be quickly and effectively integrated into technology to develop unlimited applications for a range of markets. The modem leverages industry leading BLE5, Nordic C, and comprehensive unified APIs, empowering rapid development and customization of firmware for more advanced smart data applications and enabling AI at the edge.
- All applications of Integrity 150
- Lower entry barriers for custom applications
- Modular library layer can be easily included/excluded
- Rich application examples allow for faster development
- Easy provisioning, connectivity, and configuration
- Proprietary secure Bluetooth® protocol
- Connecting sensors and edge computing solutions to the device is easy and allows for the transportation of a wealth of data and critical information
- Industry supported Language Application Base
- Embedded benefits
- Very low power consumption
- Full modular certification
- Unprecedented payload options
- Previous Track Point (PTP)
Specifications
- Built in programming headers
- I2C
- Vin - 3.3 Vdc Iin - 100 ma Max
- VRFin - 3.3 VdcIRFin - 500 ma Max
- VUSB - 5.0 Vdc
- Operation and Storage: -40 °F to 185 °F (-40 °C to 85 °C)
DIMENSIONS
1.10” (H) X 2” (W) X 0.16” (D)
28mm (H) X 50.8mm (W) X 4 mm (D)
WEIGHT
Approx. 0.27 oz (7.6 g) with shield
Certifications & Standards
- ITU GMPCS MoU
- FCC
- CE
- ISED/IC
- UKCA
- ANATEL
- ACMA
| Embedded Satellite Messaging |
Powerful One-Way Communications
The ST150M is a compact, low-power satellite transmitter module that enables OEMs to embed reliable one-way satellite communications into remote IoT and asset tracking solutions.Designed for straightforward integration, the ST150M delivers dependable Globalstar satellite connectivity for location reporting, remote monitoring, and machine-to-machine (M2M) applications operating beyond the reach of cellular networks. Its efficient, flexible design helps developers create cost-effective satellite-enabled products for a wide range of industrial and commercial use cases.
Coverage Map
Coverage Map
 |
Primary Coverage |
 |
Fringe Coverage (Customers should expect to experience weakest signal) |
|
Primary Coverage |
|
Fringe Coverage (Customers should expect to experience weakest signal) |
