| IoT Satellite Device Solutions |
Integrity 150
Next Generation Solar-Powered Asset Tracking and Edge Processing
Zero-maintenance with the longest-lasting battery and shelf life available, Integrity 150 features BLE connectivity and edge processing capacity for sensor data, with the support of the Realm Enablement Suite.
| IoT Satellite Device Solutions |

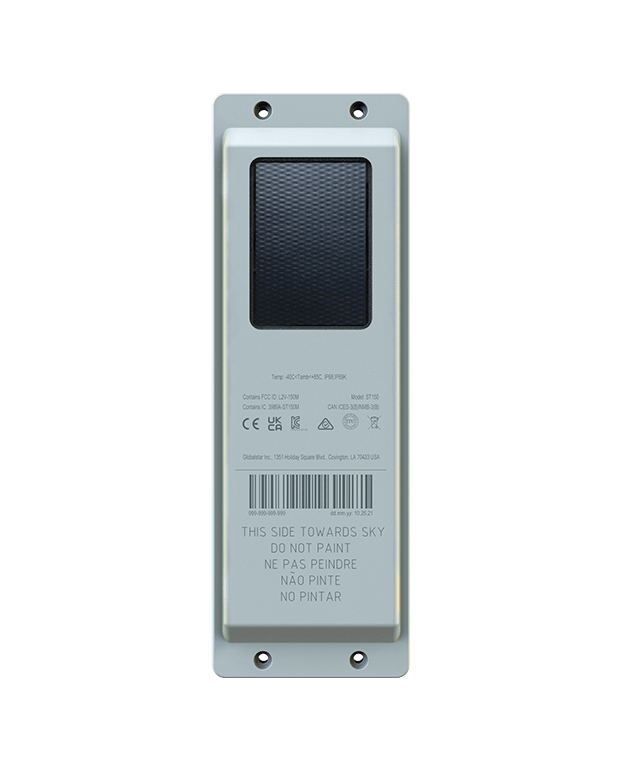

Integrity 150
Next Generation Solar-Powered Asset Tracking and Edge Processing
Zero-maintenance with the longest-lasting battery and shelf life available, Integrity 150 features BLE connectivity and edge processing capacity for sensor data, with the support of the Realm Enablement Suite.
Key Features
Specifications
Certifications & Standards
- Open-source common architecture
- Delivers reliable and secure location reporting
- Unprecedented payload options
- BLE 5.0 protocol to connect sensors and edge computing solutions
- Solar-powered batteries can last 10+ years
- Increased shelf life
- Inventory management
- Previous Track Point (PTP)
- Mobile app configures multiple devices at once
- Application Enablement
- Unified API’s
- Extensive Library of Application Software
Specifications
DIMENSIONS
1”(D) X 10.39” (H) X 3.38” (W) 26.6 mm (D) x 264 mm (H) x 86.1 mm (W)
WEIGHT
14.2 oz/402 g
With optional mounting bracket 32.02 oz. (908 g)
OPERATING TEMPERATURE
-40° F to 185° F (-40° C to +85° C)
BATTERY TYPE
Built-in rechargeable Li-Ion batteries (non-replaceable)
SATELLITE TECHNOLOGY
Global LEO Satellite operation using the Globalstar Satellite Network. See coverage map.
1”(D) X 10.39” (H) X 3.38” (W) 26.6 mm (D) x 264 mm (H) x 86.1 mm (W)
WEIGHT
14.2 oz/402 g
With optional mounting bracket 32.02 oz. (908 g)
OPERATING TEMPERATURE
-40° F to 185° F (-40° C to +85° C)
BATTERY TYPE
Built-in rechargeable Li-Ion batteries (non-replaceable)
SATELLITE TECHNOLOGY
Global LEO Satellite operation using the Globalstar Satellite Network. See coverage map.
Certifications & Standards
CERTIFICATIONS
STANDARDS
IP68/69K - IEC 60945 (Marine) - MIL-STD-810G for: - High and Low Temperature - Immersion - Dust - Water spray - Thermal Shock - Mechanical Shock - Rail Impact - Vibration (Rail, Truck)
- ITU GMPCS MoU
- FCC
- CE
- ISED/IC
- ANATEL
- ACMA
- ICASA
STANDARDS
IP68/69K - IEC 60945 (Marine) - MIL-STD-810G for: - High and Low Temperature - Immersion - Dust - Water spray - Thermal Shock - Mechanical Shock - Rail Impact - Vibration (Rail, Truck)
| Advanced Asset Visibility |
Reliable and Dependable Tracking
Integrity 150 combines solar-powered satellite tracking with Bluetooth® sensor connectivity to deliver reliable visibility for non-powered and remote assets without the need for external power or frequent maintenance.Designed for trailers, containers, equipment, and other high-value assets, Integrity 150 provides dependable GPS tracking while enabling wireless sensor integration for applications such as door monitoring, temperature, and other environmental conditions. Its rugged, maintenance-free design helps organizations improve asset security, operational efficiency, and supply chain visibility in even the most challenging environments.
Coverage Map
Coverage Map
 |
Primary Coverage |
 |
Fringe Coverage (Customers should expect to experience weakest signal) |
|
Primary Coverage |
|
Fringe Coverage (Customers should expect to experience weakest signal) |
Coverage Details
Completion rates based on Remote Telemetry Units (RTU) that are set to transmit a single packet message 3-times (the original transmission plus 2-repeats) in the frequency appropriate for the given regions. This is an estimate of coverage only. Actual Remote Telemetry coverage may vary based on terminal location, terrain features, signal strength, and other factors affecting satellite communications. Coverage may vary. Specifications subject to change without notice. This map indicates areas of potential satellite coverage only. Actual availability of service in any particular country may be subject to government approval.
