SPOT Gen4 Support
General
Public API and XML Feed
SPOT API Support: [email protected]
Copy this feed ID. You will need to add it to the API URL so that your URL looks like this:
https://api.findmespot.com/spot-main-web/consumer/rest-api/2.0/public/feed/0onlLopfoM4bG5jXvWRE8H0Obd0oMxMBq/message.xml

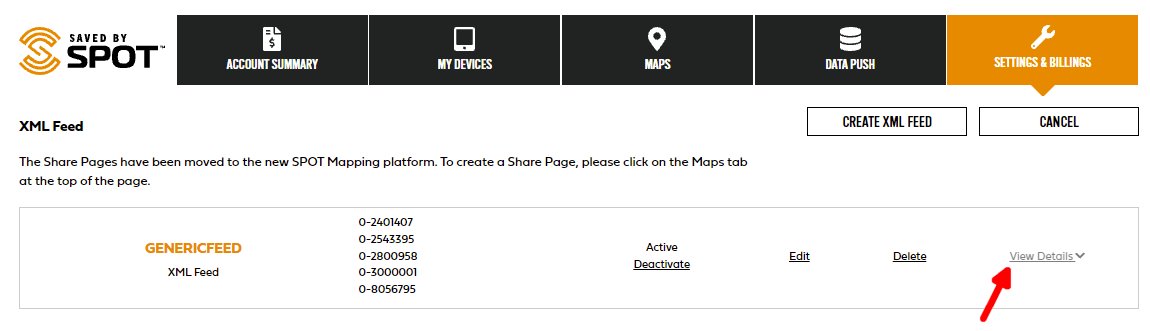

If you need to obtain your feed ID again, click View Details from the XML Feed tab and it will display your feed ID for you.
API Access:
Be considerate when making API calls, this service is provided free of charge, please do not abuse it. Repeatedly accessing the same feed in very short time periods will result in your IP being blocked or your feed disabled.
Please allow as least 2.5 minutes between calls of the same feed and if you are pulling multiple feeds have your application sleep at least 2 seconds between feed requests.
-- The API will only return data from the point in time the feed was created, up to a maximum of 7 days. Example: If you create a brand new feed for a device today, you will not be able to pull data from previous days on this new feed. --
The SPOT XML Feed is built upon an XML data stream that is enabled when a new xml feed is created.

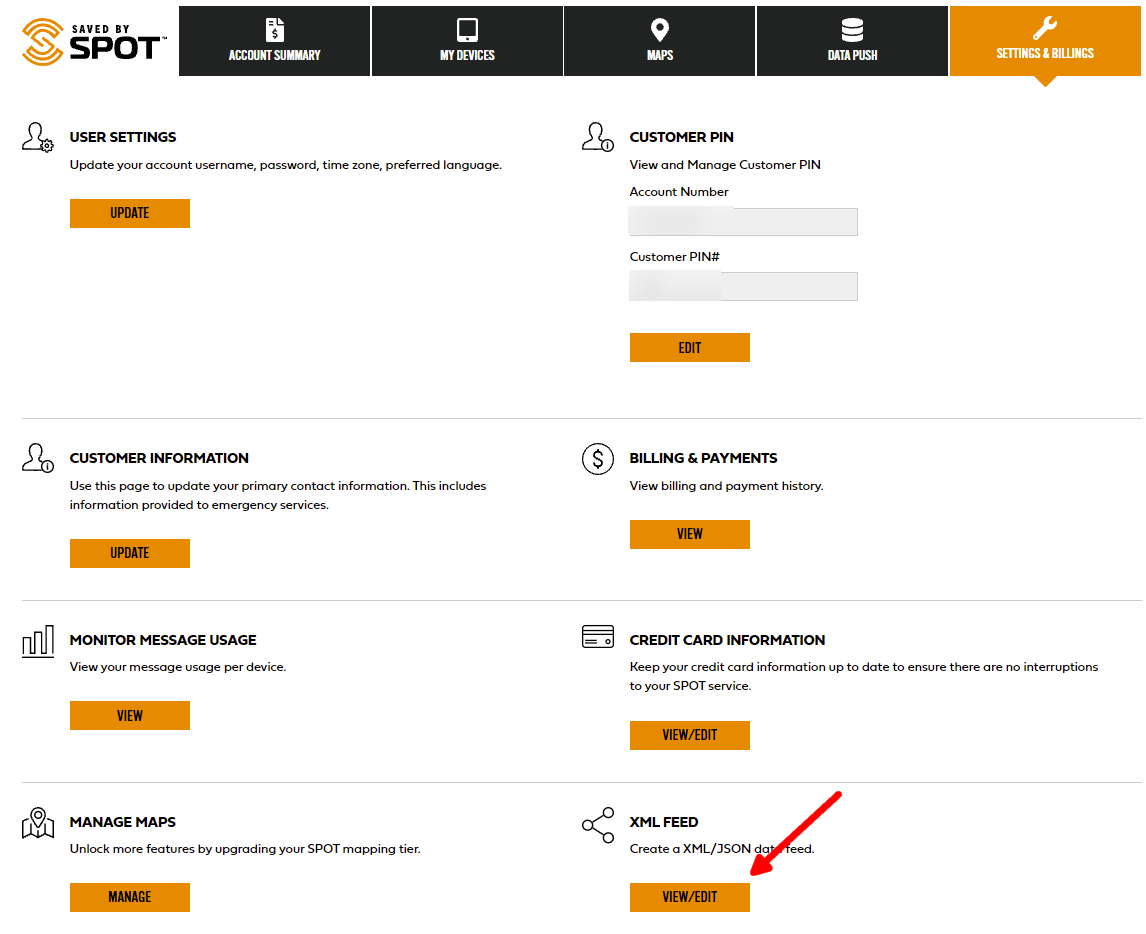

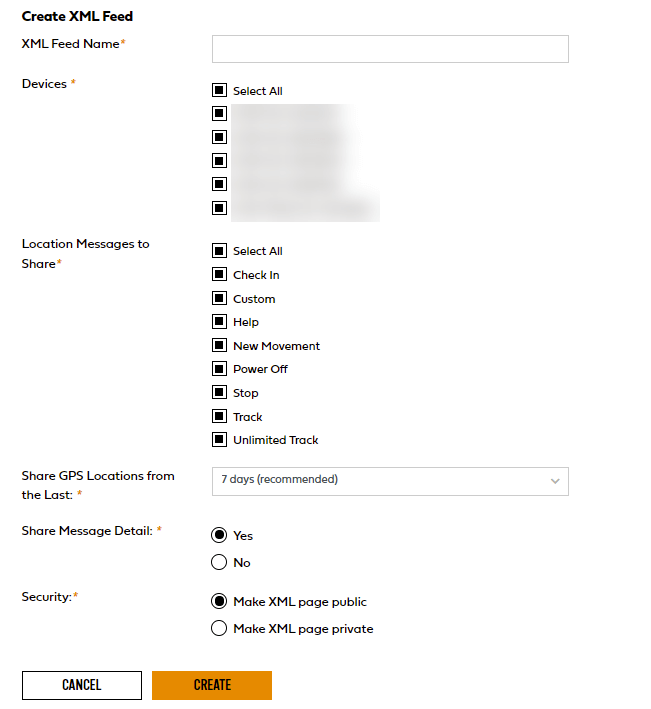

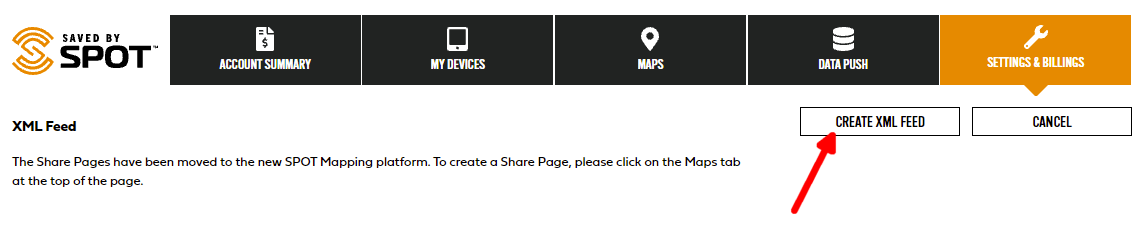

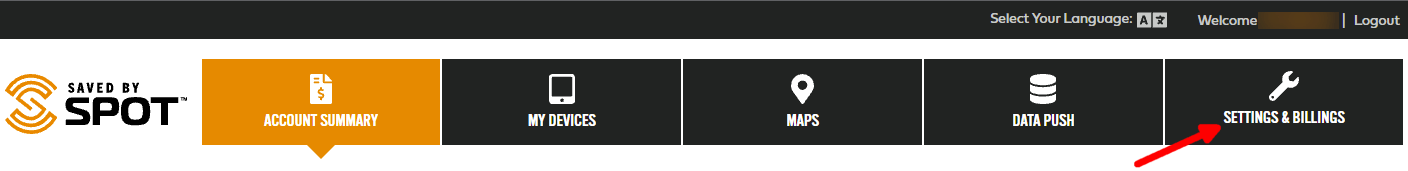

The first step is to create an XML Feed in your account.
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6

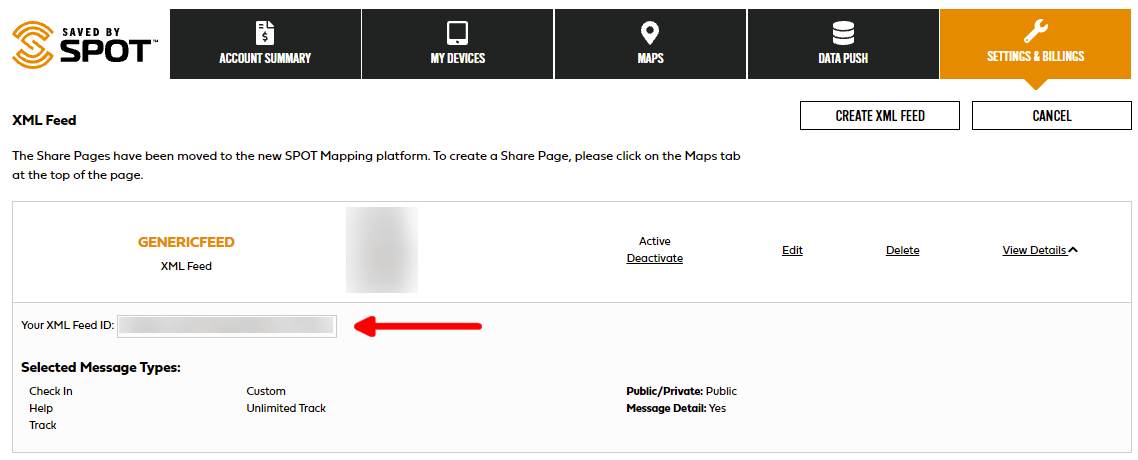

Copy this feed ID. You will need to add it to the API URL so that your URL looks like this:
https://api.findmespot.com/spot-main-web/consumer/rest-api/2.0/public/feed/0onlLopfoM4bG5jXvWRE8H0Obd0oMxMBq/message.xml
If you need to obtain your feed ID again, click View Details from the XML Feed tab and it will display your feed ID for you.
Available API usage calls:
Adding .xml before any further query string parameters will return XML and .json will return JSON.
https://api.findmespot.com/spot-main-web/consumer/rest-api/2.0/public/feed/FEED_ID_HERE/message.xml
Last 50 Messages in XML format:
https://api.findmespot.com/spot-main-web/consumer/rest-api/2.0/public/feed/FEED_ID_HERE/message.xml
Paging in increments of 50 in XML format (Note: No ?start= results in newest 50 by default):
https://api.findmespot.com/spot-main-web/consumer/rest-api/2.0/public/feed/FEED_ID_HERE/message.xml?start=51
https://api.findmespot.com/spot-main-web/consumer/rest-api/2.0/public/feed/FEED_ID_HERE/message.xml?start=101
Last 50 Messages in JSON format (both are the same request):
Adding .xml before any further query string parameters will return XML and .json will return JSON.
https://api.findmespot.com/spot-main-web/consumer/rest-api/2.0/public/feed/FEED_ID_HERE/message.xml
Last 50 Messages in XML format:
https://api.findmespot.com/spot-main-web/consumer/rest-api/2.0/public/feed/FEED_ID_HERE/message.xml
Paging in increments of 50 in XML format (Note: No ?start= results in newest 50 by default):
https://api.findmespot.com/spot-main-web/consumer/rest-api/2.0/public/feed/FEED_ID_HERE/message.xml?start=51
https://api.findmespot.com/spot-main-web/consumer/rest-api/2.0/public/feed/FEED_ID_HERE/message.xml?start=101
Last 50 Messages in JSON format (both are the same request):
https://api.findmespot.com/spot-main-web/consumer/rest-api/2.0/public/feed/FEED_ID_HERE/message.json
Last 50 Messages with password (you should be able to add ?feedPassword to any of the feed requests):
https://api.findmespot.com/spot-main-web/consumer/rest-api/2.0/public/feed/FEED_ID_HERE/message.xml?feedPassword=123456
Start/End Date - 7 days worth of data max restriction applies, regardless of what date you put in there:
https://api.findmespot.com/spot-main-web/consumer/rest-api/2.0/public/feed/FEED_ID_HERE/message.xml?startDate=2012-07-03T00:00:00-0000&endDate=2012-08-02T00:00:00-0000
(Offset functionality is currently not implemented, using -0000 is the only available offset)
Last 50 Messages with password (you should be able to add ?feedPassword to any of the feed requests):
https://api.findmespot.com/spot-main-web/consumer/rest-api/2.0/public/feed/FEED_ID_HERE/message.xml?feedPassword=123456
Start/End Date - 7 days worth of data max restriction applies, regardless of what date you put in there:
https://api.findmespot.com/spot-main-web/consumer/rest-api/2.0/public/feed/FEED_ID_HERE/message.xml?startDate=2012-07-03T00:00:00-0000&endDate=2012-08-02T00:00:00-0000
(Offset functionality is currently not implemented, using -0000 is the only available offset)
Latest - This one will show you the latest message for each device on the shared page, and only the latest message:
https://api.findmespot.com/spot-main-web/consumer/rest-api/2.0/public/feed/FEED_ID_HERE/latest.xml
https://api.findmespot.com/spot-main-web/consumer/rest-api/2.0/public/feed/FEED_ID_HERE/latest.xml
The following message types are available via the current feed:
- OK
- TRACK
- EXTREME-TRACK
- UNLIMITED-TRACK
- NEWMOVEMENT
- HELP
- HELP-CANCEL
- CUSTOM
- POI
- STOP
The XML returned via an api.findmespot.com feed will look like this:
The XML document will contain 0 or more messages. Only the messengers and message types enabled by the customer will be available in this data stream.
<?xml version="1.0" encoding="UTF-8"?> <response> <feedMessageResponse> <count>10</count> <feed> <id>03XHH0sPyTiYUsYD2TVJ4q7CzEH89HBhG</id> <name>OneAtATime</name> <description>OneAtATime</description> <status>ACTIVE</status> <usage>0</usage> <daysRange>7</daysRange> <detailedMessageShown>true</detailedMessageShown> </feed> <totalCount>10</totalCount> <activityCount>0</activityCount> <messages> <message clientUnixTime="0"> <id>4937065</id> <messengerId>0-8356068</messengerId> <messengerName>Spot2</messengerName> <unixTime>1364909292</unixTime> <messageType>HELP-CANCEL</messageType> <latitude>-99999.0</latitude> <longitude>-99999.0</longitude> <modelId>SPOT2</modelId> <showCustomMsg>Y</showCustomMsg> <dateTime>2013-04-02T06:28:12-0700</dateTime> <hidden>0</hidden> <messageContent>The help message has been cancelled</messageContent> </message> <message clientUnixTime="0"> <id>4937064</id> <messengerId>0-8356068</messengerId> <messengerName>Spot2</messengerName> <unixTime>1364909283</unixTime> <messageType>HELP</messageType> <latitude>45.42249</latitude> <longitude>-111.68832</longitude> <modelId>SPOT2</modelId> <showCustomMsg>Y</showCustomMsg> <dateTime>2013-04-02T06:28:03-0700</dateTime> <hidden>0</hidden> <messageContent>This is the default HELP message. Please update.</messageContent> </message> <message clientUnixTime="0"> <id>4937060</id> <messengerId>0-8356068</messengerId> <messengerName>Spot2</messengerName> <unixTime>1364908774</unixTime> <messageType>CUSTOM</messageType> <latitude>45.42249</latitude> <longitude>-111.68832</longitude> <modelId>SPOT2</modelId> <showCustomMsg>Y</showCustomMsg> <dateTime>2013-04-02T06:19:34-0700</dateTime> <hidden>0</hidden> <messageContent>This is a custom message</messageContent> </message> <message clientUnixTime="0"> <id>4937059</id> <messengerId>0-8356068</messengerId> <messengerName>Spot2</messengerName> <unixTime>1364908765</unixTime> <messageType>OK</messageType> <latitude>45.42249</latitude> <longitude>-111.68832</longitude> <modelId>SPOT2</modelId> <showCustomMsg>Y</showCustomMsg> <dateTime>2013-04-02T06:19:25-0700</dateTime> <hidden>0</hidden> <messageContent>This is the default SPOT Check-in/OK message. Please update.</messageContent> </message> <message clientUnixTime="0"> <id>4937057</id> <messengerId>0-8356068</messengerId> <messengerName>Spot2</messengerName> <unixTime>1364908512</unixTime> <messageType>TRACK</messageType> <latitude>45.42249</latitude> <longitude>-111.68832</longitude> <modelId>SPOT2</modelId> <showCustomMsg>Y</showCustomMsg> <dateTime>2013-04-02T06:15:12-0700</dateTime> <hidden>0</hidden> </message> </messages> </feedMessageResponse> </response>
The XML document will contain 0 or more messages. Only the messengers and message types enabled by the customer will be available in this data stream.
